¡¡¡¡WGMD-6 Distributed
3-D Multi-electrode Resistivity Imaging System

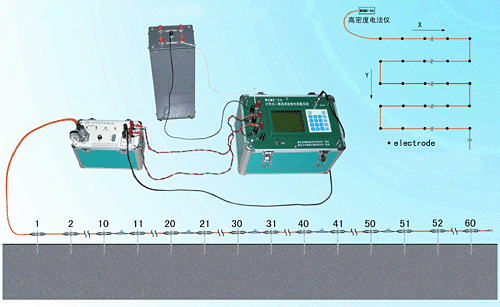

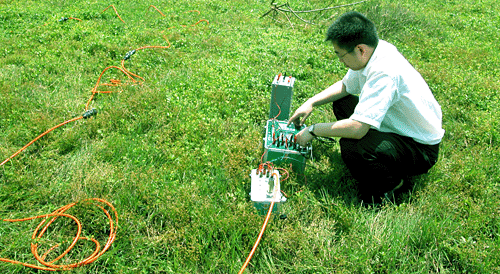

¡¡WGMD-6 distributed 3-D multi-electrode resistivity imaging system
is composed of WGMD-6 mainframe, PDS-1distributed switcher adapter,
distributed switcher cable and electrodes. WGMD-5 has all capability
of WDJD-3 multi-function digital DC induced polarization electric
tool. It is capable of not only normal resistivity survey, but
also 2-D, 3-D multi-electrode resistivity survey.
¡¡¡¡WGMD-6 is characterized of large storage, quick and accurate
measurement, convenient operation. It is compatible with other
high-density software, so that the interpretation is convenient
and direct. It can be used in energy exploration and civil geophysical
prospecting, railway and bridge survey, mental and non-mental
mineral survey. It can also be used in hydro- and engineering
geology survey, such as underground water, water reservoir dam
site, flood control dam hidden trouble detection, and geothermic
field survey.
¡¡
Main Features
- Truly one machine with multi-function- it is capable of
normal resistivity survey, 2-D multi-electrode resistivity
survey and 3-D multi-electrode resistivity survey.
- Accurate and highly efficient: under the good repeatability,
less than 15 minutes for a section (2-D or 3-D).
- Super large storage: For 2-D survey in mode I (only resistivity),
no less than 43680 times measurement. For 2-D survey in mode
II (resistivity and current), no less than 21840 times measurement.
For 3-D survey (apparent resistivity and supply current),
no less than 32768 times measurement. No data loss when power
off.
- Multiple mode data coexistence: normal resistivity method,
2-D and 3-D multi-electrode resistivity data, none interference
from each other.
- Ground check: convenient and quick ground checks at any
time in field.
- Electrode arrangement: more than 18 arrangement mode and
extendable for 2-D survey. It is capable of not only fixed
section scan measurement (AMNB¡¢ABMN, AMBN, AMN, MNB, A-MN-B,
SP-M, SP-MN, charge M, charge MN), but also changeable section
continuous scan measurement (A-M, A-MN, AB-M, AB¨CMN, MN-B,
A-MN square, A-MN-B, cross-hole dipole). Continuous scan measurement
permits the any length of section while the electrode number
is fixed. It is convenient for trace the long section with
low cost and high efficiency. Multiple arrangement is provided
for 3-D multi-electrode measurement, such as two-pole, three-pole
and dipole.
- For 2-D multi-electrode measurement, start electrode number
is designated, convenient and flexible
System buildup
¡¡¡¡(1) WGMD-6 distributed 3-D multi-electrode resistivity
imaging system mainframe
- normal DC resistivity and IP measurement.
- 2-D multi-electrode resistivity
- 3-D multi-electrode resistivity
- measured results display, storage
- transmitter and receiver combined
- super low power cost design
- equipped with RS-232C port
¡¡¡¡(2) PDS-1 distributed switcher adapter, cable and stainless
electrodes
- 800V super-high voltage, maximum 3A current, advanced internationally
- polyurethane coated cable designed for field survey, reliability,
high performance, high anti-interference.
- PC controlled, accurate, reliable, quick
- imported reliable switcher design
- electrode number can be added by adding cable chain in distributed
switcher, convenient and flexible.
- stainless spring link the stainless electrode and cable
switcher box, reliable and convenient, uniquely in China.
- complete electrode check and recheck after switcher setup,
prohibit illegal setup
- unlimited electrode arrangement
- PDS-1 distributed switcher adapter offer external power
plug, can be power by 24V battery
¡¡¡¡(3) PDZ-1 distributed switcher self check
- quick diagnosis cable chain trouble, direct and convenient
¡¡¡¡(4) WINDOWS version software
- data receiving and format transfer
- common data editing and plot
- electrical sounding automatic interpretation
- isoline, 3-D curved surface plot
- 2-D high density forward modeling and inversion
Technical specifications:
¡¡(1) WGMD-6 mainframe
¡¡¡¡Receiver
- Voltage channel£º¡À6V
Survey accuracy: if Vp¡Ý10 mV then ¡À 5¡ë ¡À 1 LSB, if Vp <
10 mV, then ¡À1% ¡À 1 LSB
- Current: 5A
Survey precision: if IP¡Ý 10mA then ¡À 5¡ë ¡À 1 LSB, if IP <
10 mA, then ¡À1% ¡À 1 LSB
- apparent resistivity measurement accuracy: ¡À1% ¡À1 LSB
- depression is more than 80dB for 50Hz industrial interference
(common mode or different mode interference)
- input impedance: ¡Ý50M¦¸
¡¡¡¡Transmitter
- maximum supply voltage: 900V(800V for distributed multi-electrode
resistivity )
- maximum supply current: 5A
¡¡¡¡Others
- device supply current: ¡Ü55mA
- power: 8 D size batteries (or same specs nickel-cadmium
battery)
- Working temperature: -10¡æ¡«+50¡æ, 95%RH
- Size: 310¡Á210¡Á210 mm
- weight: 6Kg
¡¡(2) distributed switcher cable
- cable: polyurethane coated, outer diameter¦µ9mm
- cable switcher box number: 10 channels/chain (ten electrode
per chain)
- box interval: 1¡«10m (designated by user)
- box size:¦µ25mm¡Á110mm (box only),¦µ25mm¡Á170mm (including rubber
head)
- maximum supply voltage: 800V
- maximum supply current: 3A
- cable insulator: between A, B supply cable or between and
A/B and low voltage cable¡Ý1000M¦¸/1000V between low voltage
cable¡Ý500M¦¸/500V
- Working temperature: -20¡æ¡«+70¡æ
¡¡(3) PDS-1 distributed switcher adapter
- insulator£ºbetween A, B supply cable or between and A/B and
low voltage cable¡Ý1000M¦¸/1000V between low voltage cable¡Ý500M¦¸/500V
- connection to mainframe: A, B, M, N connecting bar£¬RS-232
port
- connection with cable switcher box: 12-pin socket
- power: 18 D size batteries (or same specs nickel-cadmium
battery) £¨can be powered by 24V external battery with voltage
more than 20V£©
- size: 220¡Á130¡Á210 mm
- weight: 2kg
- Working temperature:-10¡æ¡«+50¡æ
|
|
