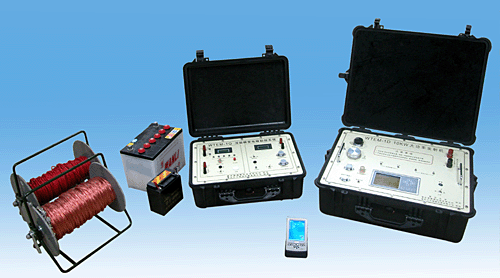

WTEM-1 Transient
Electromagnetic System |
|
ĦĦĦĦWTEM-1 is newly developed product with all functions of Transient
Electromagnetic method. It is full of the advantages of same products
home and abroad, and characterized with large transmitter power,
high reliability, strong anti-interference (sky electricity, 50
or 60 Hz industrial electricity), light and of low power cost.
ĦĦĦĦConfiguration is selectable for different geological problems,
such as quick survey, stereo mapping, deep mine finding, and shallow
detection. It is mainly used for metal mine, coal mine, oil and
gas field, geothermic field, and hydro- and engineering geology
survey.
System Features
- High
reliability, low power cost- Uniquely home and abroad, all-Chinese
PDA based blue-tooth wireless communication technique controlled
receiver. Refined power circuit, fastened sealed mechanical
structure, ensure the high reliability, low power cost, and
convenience.
- Strong anti-interference- program controlled hardware filter,
unique and accurate power supply frequency, and data stack
result in strong anti-interference.
- Multi-channel, high accuracy- linear or logarithmic distributed,
operator controllable channel number. High accuracy tropic
crystal oscillator accomplished timing result in stable and
precise time¨Cdepth relation. Reasonable sampling window images
the true subsurface structure. It is fitted for complex geological
problems.
- Quick turnoff transmitter- all transmitters are equipped
with quick turnoff switcher. Possibly extended shallow detecting
range. Turnoff time function provides interpretation software
accurate turnoff time so that resolution is enhanced.
- All-day depth detection- large power transmitter ensures
the detecting depth from tens of meters to thousand of meters.
Optional small power transmitter fulfills the detection of
several meters to tens of meters.

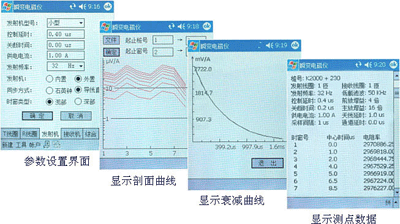

- Friendly and powerful interface- all-Chinese PDA fulfils
man-machine interface and sampling control. Parameters setup,
data display and storage, plot can be done locally. Fieldwork
is easy.
- Simple and convenient synchronization ¨C Transmitter and
receiver can be synchronized through synchronization cable,
or quartzite clock (optional Transmitter quartzite clock synchronization
controller needed).
Technical specifications
ĦĦĦĦ(1) Receiver
- Channel: 1
- Frequency pass band: 0ĦĞ50KHz(linear phase filter)
- Industrial frequency depression: ĦŬ80dB
- A/D bit: 16-bit
- Minimum sampling gap: 1ĤÌs
- Crystal oscillator frequency difference: ĦÜ5ĦÁ10-9
- Channel number: ĦÜ50
- Stack number: 1ĦĞ2048
ĦĦĦĦ(2) Large power transmitter
- Transmitter voltage: ĦÜ200V
- Transmitter current: ĦÜ50A
- Current measurement accuracy: ĦÀ1%
- Power supply frequency: 0.0625HzĦ˘0.125HzĦ˘0.25HzĦ˘0.5HzĦ˘1HzĦ˘
2HzĦ˘4HzĦ˘8HzĦ˘16HzĦ˘32Hz
- Transmitter waveform: +ONĦ˘OFFĦ˘-ONĦ˘OFF£Ĵequal width dual polarity
wave.
- Turnoff delay measurement: 1ĤÌsĦĞ1000ĤÌs
- Synchronization mode: external (cable)
ĦĦĦĦ(3) Super-small power transmitter (optional)
- Transmitter voltage: 12V£Ĵ24V
- Transmitter current: ĦÜ5A
- Current measurement accuracy:ĦÀ1%
- Power supply frequency: 4HzĦ˘8HzĦ˘16HzĦ˘32Hz
- Transmitter waveform: +ONĦ˘OFFĦ˘-ONĦ˘OFF£Ĵequal width dual polarity
wave.
- Turnoff delay measurement: 0.1ĤÌsĦĞ100.0ĤÌs
- Synchronization mode: external (cable)
ĦĦĦĦ(4) Transmitter quartzite clock synchronization controller£¨optional£İ
- Crystal oscillator frequency difference: ĦÜ5ĦÁ10-9
ĦĦĦĦ(5) Other
- PDA£şPocket PC 2003 system£Ĵ320ĦÁ240 true color£Ĵ64Mb memory
(no less than 1000 point data), blue-tooth, infrared, serial
ports.
- Battery adapter: 12V£Ĵrecharging current ĦÜ20A£Ĵrecharging
time: ĦÜ10 hours (manageable)
- Working temperature: -10ĦĉĦĞ+50Ħĉ
ĦĦĦĦ(6)Processing software
- 1-D, 2-D inversion software under Windows version. SURFER,
data transfer and format transfer. Quick data playback, processing
and plotting.
|
|
|
